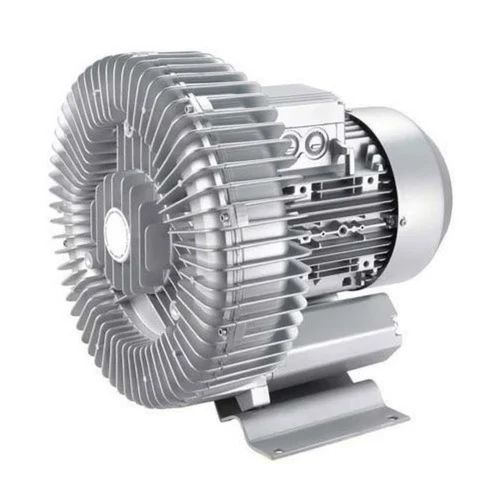

Double Stage Regenerative Blower Model SPB DS-230

Double Stage Regenerative Blower Model SPB DS-230 Specification

Life Span
Long life

Pressure Range
Up to 210 mbar

Power
1.5 kW

Motor Power
2 HP

Flow Rate
300 m3/hr

Output Power
1.5 kW

Max Pressure
210 mbar

Vaccum Range
Up to -210 mbar

Product Type
Double Stage Regenerative Blower

Material
Aluminium Die Cast

Capacity
300 m3/hr

Pressure
210 mbar

Application
Pneumatic conveying, Vacuum lifting, Air supply, Aeration, Industrial use

Frequency (MHz)
50 Hz

Motor Speed
2880 RPM

Noise Level
< 70 dB

Power Source
Electric

Voltage
230 V

Weight
19 Kg

Dimension (L*W*H)
360 x 310 x 330 mm

Color
Grey

Insulation Class
Class F

Cooling Method
Air Cooled

Impeller Type
Aluminium Radial

Phase
Single Phase

Bearing Type
Double Sealed Ball Bearings

Mounting Type
Base Mounted

Protection Class
IP54

Ambient Temperature
-20C to +40C

Suitable For Continuous Duty
Yes

Enclosure Type
TEFC (Totally Enclosed Fan Cooled)

Double Stage Regenerative Blower Model SPB DS-230 Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
50 Units Per Month

Delivery Time
10 Days

About Double Stage Regenerative Blower Model SPB DS-230

The Double Stage Regenerative Blower Model SPB DS-230 is an ephemeral laureate in air management solutions, engineered to deliver optimum performance in demanding industrial environments. With a magnificent design featuring a robust aluminium radial impeller and double sealed ball bearings, this blower ensures continuous duty and long life. Select this deal for its base-mounted configuration, TEFC enclosure, and IP54 protection, providing exceptional reliability. Suitable for temperatures from -20C to +40C, it operates silently at less than 70 dB. Ideal for pneumatic conveying, vacuum lifting, and aeration, it is manufactured to outlast and outperform.

Versatile Application and Precision Usage

The Double Stage Regenerative Blower Model SPB DS-230 is used across various industrial sectors for tasks requiring efficient air movement, such as pneumatic conveying, vacuum lifting, and continuous air supply. Its specific design supports application in environments like aeration systems, material handling facilities, and industrial production lines. These application places benefit significantly from the blower's reliable operation and outstanding pressure range, facilitating critical operations where performance and dependability are paramount.

Sample Policy, Certifications, and Supply Assurance

Our Sample Policy for the Double Stage Regenerative Blower Model SPB DS-230 provides prospective clients a transparent valuation and swift shipment process for evaluation. Certified to meet industrial standards, this model guarantees compliance and reliability in diverse applications. As a trusted distributor, manufacturer, service provider, and supplier across India, we ensure optimum supply ability and prompt exchange options, delivering consistent product quality with each transaction.

FAQ's of Double Stage Regenerative Blower Model SPB DS-230:

Q: How does the Double Stage Regenerative Blower Model SPB DS-230 operate under continuous duty conditions?

A: Thanks to its robust aluminium die-cast construction, TEFC enclosure, Class F insulation, and double sealed ball bearings, the SPB DS-230 is designed to function efficiently during continuous duty cycles, supporting long-term, uninterrupted operations in industrial environments.

Q: What are the primary applications and benefits of using the SPB DS-230 model?

A: The SPB DS-230 is ideal for pneumatic conveying, vacuum lifting, air supply, aeration, and other industrial uses. Its main benefits include reliable airflow, optimum pressure generation, low noise levels, and a long service life, ensuring operational excellence.

Q: Where can this regenerative blower be installed and used?

A: This blower is suited for installation in varied industrial environments such as manufacturing plants, material handling facilities, aeration systems, and vacuum lifting stations, leveraging its versatility and durability for numerous applications.

Q: What is the process for obtaining a sample or initiating an exchange?

A: Clients can request a sample for valuation prior to purchase. If an exchange is necessary, our streamlined shipment and exchange process ensures quick resolution. All procedures are designed to meet client satisfaction and application-specific requirements.

Q: What certifications and quality assurances are provided with the SPB DS-230 blower?

A: The blower is certified to comply with recognized industrial standards, ensuring safety and consistent performance. As a manufacturer and supplier, we strictly adhere to quality assurance protocols, offering dependable warranties and service support.
