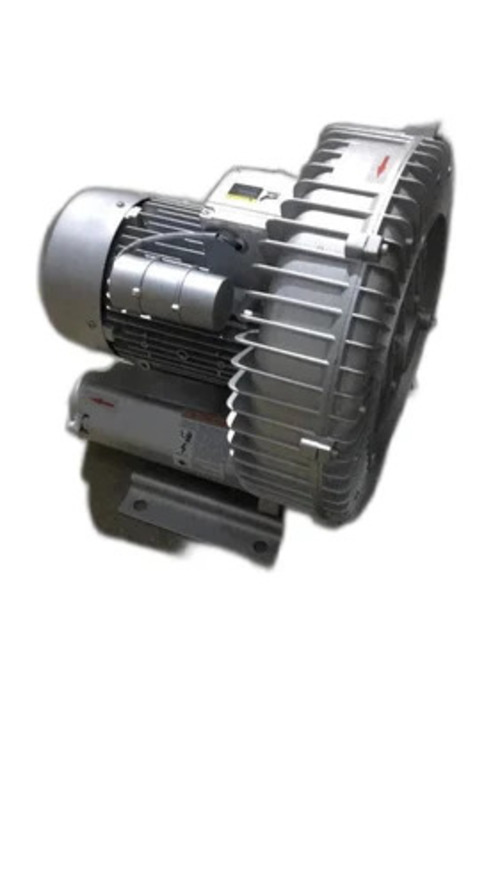

Regenerative Blower Model SPB-1-145

Regenerative Blower Model SPB-1-145 Specification

Pressure Range
Up to 140 mbar

Max Pressure
140 mbar

Life Span
Approximately 5-7 Years

Vaccum Range
-120 mbar

Flow Rate
145 m3/h

Motor Power
1.1 kW

Output Power
1.1 kW

Power
1.1 kW

Product Type
Regenerative Blower

Material
Aluminium Die Cast

Capacity
145 m3/h

Pressure
140 mbar

Application
Pneumatic Conveying, Aeration, Vacuum Lifting, Air Knife Drying

Frequency (MHz)
50 Hz

Motor Speed
2850 RPM

Noise Level
63 dB(A)

Power Source
Electric

Voltage
220 V / 380 V

Weight
22 Kg

Dimension (L*W*H)
370 x 390 x 420 mm

Color
Grey

Protection Class
IP 54

Cooling Type
Air Cooled

Direction of Rotation
Clockwise (CW)

Inlet/Outlet Size
1.5 Inch

Phase
Single Phase / Three Phase

Mounting Type
Base Mounted

Insulation Class
F

Ambient Temperature Range
5C to 40C

Impeller Material
Aluminium

Regenerative Blower Model SPB-1-145 Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
50 Units Per Month

Delivery Time
10 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Regenerative Blower Model SPB-1-145 About

Regenerative Blower / Ring Blower / Side Channel Blower
Model SPB-1-145.
Capacity :- 145 m3/hr
Max. Vac :- 150mBar
Max Pressure :- 160mBar
Sound :- 63dB
Weight :- 14 Kgs.
Colour :- Golden

Efficient and Versatile Blower Design

The SPB-1-145 Regenerative Blower delivers high airflow and strong vacuum/pressure capabilities, making it suitable for diverse applications such as vacuum lifting, aeration, drying, and conveying. Its rugged construction and air-cooled mechanism ensure consistent performance even in demanding environments. With clockwise rotation and an aluminium impeller, it is optimized for efficiency and durability.

Safe and Reliable Operation

Equipped with insulation class F and protection class IP 54, the SPB-1-145 offers enhanced motor safety and resilience against dust and water splashes. Its wide ambient temperature range and stable electric power supply compatibility guarantee steady operation for years, with an estimated lifespan of 5-7 years when used according to specifications.

Installation and Customization

This base-mounted blower features a universal inlet/outlet size (1.5 inch) and compact dimensions, facilitating straightforward installation in tight spaces. Available for both single and three-phase power systems at 220V or 380V, the SPB-1-145 can be tailored to suit the needs of various industrial setups across India.

FAQ's of Regenerative Blower Model SPB-1-145:

Q: How is the Regenerative Blower Model SPB-1-145 typically installed and where can it be used?

A: The SPB-1-145 is base mounted, allowing easy and stable installation on flat surfaces. Its compact size makes it suitable for workshops, factories, and process lines throughout India. It can be seamlessly integrated into systems requiring pneumatic conveying, air knife drying, vacuum lifting, or aeration.

Q: What are the key benefits of using the SPB-1-145 Regenerative Blower in industrial applications?

A: This blower provides high airflow (145 m3/h) and reliable pressure (up to 140 mbar), making it ideal for applications requiring consistent and efficient air movement. Its durable aluminium die cast impeller and IP 54 motor protection ensure longevity and reduce maintenance needs, while the low noise level (63 dB(A)) creates a more comfortable work environment.

Q: When should I consider maintenance or servicing for this blower model?

A: Routine inspections are recommended every 6 to 12 months, depending on operating conditions and application intensity. Check for blockages, clean filters, and inspect the impeller for wear. Following the manufacturer's maintenance schedule helps maximize the blower's life span of 5-7 years.

Q: What process is involved in starting and stopping the blower safely?

A: Before starting, ensure all electrical connections match the power requirements (220V/380V, single/three phase) and the unit is securely mounted. To start, switch on the power, and confirm the motor rotates clockwise (as specified). To stop, power off the unit and allow it to cool. Always follow all safety instructions in the user manual.

Q: How does the protection class IP 54 and insulation class F enhance the blower's performance?

A: IP 54 protection guards the blower's motor against dust and water splashes, reducing the risk of damage in industrial environments. Insulation class F ensures that internal components are safeguarded against overheating, leading to improved reliability and extended operational life.

Q: Can the SPB-1-145 handle varying power supplies, and what are its voltage options?

A: Yes, the blower is compatible with both single-phase (220 V) and three-phase (380 V) power supplies and operates at a frequency of 50 Hz, making it adaptable for a wide range of industrial electrical setups commonly found across India.
